Apple CarPlay/Android Auto, Kenwood

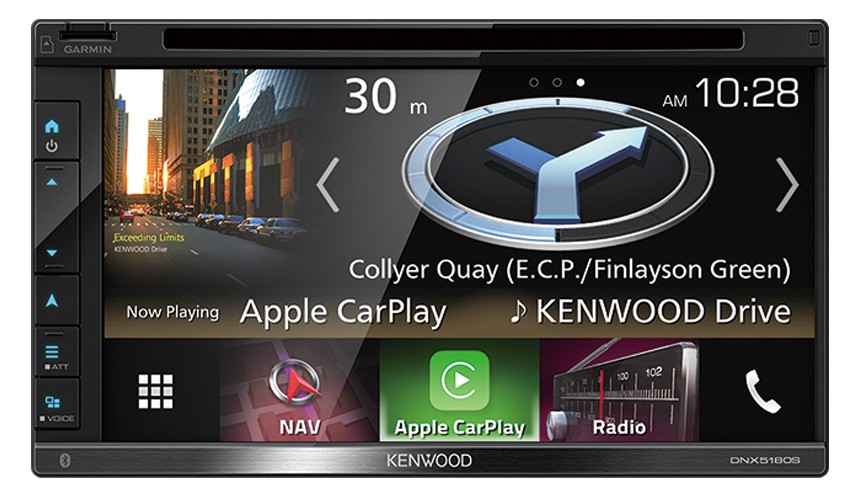

Kenwood DNX5018S Dual Bluetooth Apple CarPlay & Android Auto Waze Nav-app DVD USB NZ Tuners 3x Pre Outs Car Stereo
Availability:
Available on back-order
Android Auto & Apple CarPlay Waze Nav-App 6.8″ Panel Hi-Res Clear Resistive WVGA, Dual Din Bluetooth, 1.5V DUAL USB, 4V 3 Preout, Direct OEM Wired Remote, 2 Phone Full-Time Connection, Hi-Resolution Audio, HFP 1.6, 2 x Camera Inputs with Guideline, USB Video Playback, 3 Way X’Over, DVD/CD/FLAC/DSD/AAC/WAV/MP3/WMA
$1,469 $1,799
Available on back-order
Related products
-
Double DIN, Kenwood
Kenwood DDX-4019BT Double-din 6.2″ Monitor DVD-Receiver with Built-in Bluetooth
0 out of 5(0)Hi-Res VGA Colour TFT 6.2″ Dual Din Bluetooth, 1.5V USB, AUX, DVD Playback, 4V 3 Preout, Direct OEM Wired Remote, 2 Phone Full-Time Connection, HFP 1.6, 2 x Camera Inputs with Guideline, Time Alignment
SKU: DDX4019BT$469 -
Double DIN, Kenwood
Kenwood DDX4019BT DVD/CD/USB Receiver with Bluetooth
0 out of 5(0)Key Features
6.2 Wide VGA LCD Touch Screen Bluetooth Built-in for Handsfree & Audiostreaming 4 x 50W Max output Power 3 RCA High-voltage (4.0V) Preouts Built-in DSP, DTA & 13-band EQ iPod/iPhone & Android Music Playback Kenwood Remote App & Music Mix App Ready Spotify App Ready MP3, WMA, AAC, WAV & FLAC Audio Playback MPEG1, MPEG2, DivX, Video File Playback
General Features
DIN Size 2 DIN Security Code Function ( user set) Yes, (4 digits) On Screen Display (OSD) Operation Yes Smooth GUI Yes Key Illumination Variable color Rotary Encoder & Control Knob Yes Touch sensor Yes Installer Memory Yes Back-up Memory Yes Attenuator with Smooth Volume Return Yes Optional IR remote controller Yes, (KNA-RCDV331) Digital Clock (24H) Yes Bluetooth unit built-in Yes Made for iPod Yes Firmware upgreadable Yes
Monitor Features
Screen Type 6,2″ Resistive touch panel High Resolution VGA Display Yes LCD type 6,2 inch Wide VGA LCD backlight LED (Variable Colour) Display Mode 4 Mode (Full(default)/Just/Auto/Normal) Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast/Black Level/Sharpness Dimmer function Manual/Sync Dimmer Level Auto/On/Off Touch Panel Clear resistive Display Type Glare Mechanism type Fixed LCD viewing angle control 5 steps (0° – 20°) NTSC/PAL judge Yes (Auto) Display Off Mode Yes
Multimedia GUI Features
Variable Colour illumination Yes Software updates (SoC) by USB Graphics Type Graphics Demonstration Mode Yes Top Menu Customize Yes Background Customize preset x 9 + user set x 1 Screen Capture Yes R-CAM interrupt Yes R-CAM Caution On Screen Display Yes R-CAM Parking Guide Lines Yes Menu text in selectable language ► English (Default)
► Spanish
► French
► German
► Italian
► Dutch
► Russian
► Portuguese
► Chinese (Simplified)
► Chinese (Traditional)
► Korean
► Thai
► Turkish
► Arabic
► Persian
► Hebrew
► Greek
► Malasian
► Indonesian
► Polish
► Czech
► Hungarian
Tuner Features
Station Select Manual / Preset FM Reception Yes AM (MW/LW) Reception Yes Tuner Presets (FM/AM) 20 Presets (15FM / 5AM) Up/Down Seek/Scan Yes Automatic Memory Entry (AME) Yes FM Stereo / Mono Selector Yes Radio Data System Yes Radio Text Plus Yes Traffic Information Yes Local search Yes AF Regional Selectable: AF/AF Reg/OFF Enhanced Other Networks Function (EON) Yes Program Type Function (PTY) Yes PTY News Off/0/10/20/…/80/90min
Bluetooth General Features
Hands Free Profile (HPF) V1.6 Max num. of regist. phones for HFP 5 phones 2 phones fulltime connection Yes Advanced Audio Distribution Profile (A2DP) Yes High Quality Audio Streaming SBC/AAC Serial Port Profile (SPP) Yes Simple Secure Pairing (SSP) Yes Phonebook Access Profile (PBAP) Yes Wireless Music Browsing (AVRCP 1.5) Yes Easy pairing function Yes iPhone automatic pairing via USB Yes Spotify App Link Iphone & Android KENWOOD Remote App Ready Yes KENWOOD Music Mix Support Yes Catchphone / Call Waiting Yes Private mode Yes Noise Canceller Yes Echo Canceller Yes Phone device status display Yes Audio device status display Yes Signal strength display Yes Remaining battery display Yes High-quality noise canceling microphone included Bluetooth firmware upgradeable Yes * depends on phone model/make & Kenwood unit
CE_Playable Audio file
AAC (*.m4a) files are playable CD/USB AAC (*.aac) files are playable USB MP3 files are playable CD/USB WMA (.wma) files are playable CD/USB WAV (.wav) files are playable CD/USB FLAC files are playable USB
CE_Playable Video file
MPEG1/2 files are playable CD/USB JPEG files are playable CD/USB DivX CD/USB
DVD-Features
DVD Region Code 2 DVD-Video Yes VCD Compatible Yes DVD±R/RW Compatible Yes CD-DA Yes CD-R/RW Compatible Yes CD-DA Repeat/Scan/Random play Yes CD Text yes Jacket Picture with Tag Yes Supported audio files MP3, WMA, AAC(m4a), WAV Supported video files DivX, MPEG1, MPEG2 Supported image files JPEG Zoom Control (DVD/VCD) Yes Digital/Analog Converter 24 bit Time Code Display Yes Skip/Search Yes Direct Track Acces by Remote Random Play Disc/Folder Repeat Play Folder/File List Access Yes Time Code Display Yes Direct Search Yes Resume Play / Last Position Memory Yes On screen display (OSD) Yes
USB Features
Rear USB Terminal Yes USB Type 2.0 High speed Drive Change Yes Kenwood Music Control App for Android Yes Spotify App link Iphone Android Open Accessory support (AOA) V 2.0 Supported audio files MP3, WMA, AAC(m4a), AAC(aac), WAV, FLAC Supported video files DivX, MPEG1, MPEG2 Supported image files JPEG JPEG slide show Yes Repeat/Scan/Random search Yes Repeat / Random Play Yes Resume play Yes Time code display Yes 1,5A Charge Capability for Smartphone (BC 1.2). Yes
iPod Features
Connection via: USB / Bluetooth Made for iPod & iPhone * Yes Music playback Yes Video playback Yes Album art support Yes Music library search Yes Alphabet search Yes Skip search Yes Related search Yes Direct Search Yes My playlist Yes iPod EQ Mode Yes Control by hand Yes App & iPod control mode Yes iPod Accessory Protocol (iAP) over Bluetooth High speed search Yes Reverse browsing Yes Voice Control using Siri. Yes Bluetooth Auto Paring for iPhone Yes Battery charge + power control Yes * Always update to latest Apple firmware ** Apple Lightning – 30 pin adapter required *** In case of Apple Unit with Lightning Connector only Audio playback Yes
Audio features
Max. Output Power (MOSFET Power IC) 4 x 50W Pre-out 3RCA: Front/Rear/Subwoofer Pre-out Output Level 4V Volume Offset Yes Low Pass Filter (LPF) Yes Subwoofer Phase Control Yes Subwoofer Reference Level Adj. Yes High Pass Filter (HPF) Yes Balance/Fader Control Yes Loudness Control Yes Bass Boost Yes Att.(-20dB) with smooth Volume Return Yes Drive Equalizer / Drive EQ Yes Equalizer Yes, 13-band Digital Sound Processor (DSP) Yes Speaker Select Yes
Multimedia DSP Features
Position Control Yes Position Preset ► All
► Front left
► Front right
► Front allPosition Cabin Size Yes, ► Off
► Compact car
► Sedan
► Station car
► Minivan
► Sport-utility vehicle (SUV)
► Passenger vanGraphic Equalizer 13 bands G-EQ KBS Yes, 8 x Preset + 4 x User set G-EQ manual setting Yes G-EQ adjustable level Yes, +9dB / -9dB Time Alignment 0cm ~ 610cm High Pass Filter (HPF) Yes (Front/Rear/Center) HPF Cut Off Frequency 14 HPF Cut Slope Level 4 steps Low Pass Filter (LPF) Yes (Non-Fading) LPF Cut Off Frequency 14 LPF Cut Slope Level 4 steps Cross-over Yes 3-Way X’Over Yes Source DSP Memory Yes Speaker Size Control Yes Car type control Yes Channel Level Control Yes Space Enhancer Yes Supreme Yes Sound Realizer Yes Loudness Yes Stage EQ Yes Bass Boost Yes Drive EQ Yes
Video Features
Audio Video Output Yes, Video only (RCA) Audio/Video Input Yes, Mini-jack, non switchable Video-In for Rear-view Camera 1 dedicated NTSC video input (RCA) Detection Mode Rear View Camera Reverse sensor wire Parking Guide Line Yes DVD Menu Direct Touch Operation Yes
Connectivity
iPod Digital Connection (1 Wire) Yes USB interface 1 x rear, pigtail (1m) OEM Wired Remote Control ready Yes Programmable OEM Steeringwheel Remote Function Yes DC-Cord Mitsumi to ISO Parking sensor (handbrake) wire Yes Power Control (P.CON) wire Yes 2-way (Tel/Navi) mute wire Yes Dimmer control wire Yes AV-Input (Non Switchable) (Mini-jack) Video Out 1 X RCA (DVD/USB/AV-in) Reverse sensor wire Yes Rear View Camera Input Dedicated RCA Video-in Amplifier pre-out RCA: Front/Rear/Subwoofer FM Antenna Input JASO connector External microphone input 3,5mm mini-jack
Tuner Specifications
FM range: 87.5Mhz – 108MHz (50Khz step) Yes FM Usable Sensitivity 0.56μV/75ohm (S/N 6.2dBf) FM Quieting Sensitivity 1.58μV/75ohm (S/N 15.2dBf) FM Frequency Response 30Hz ~ 15kHz (± 3dB) FM Signal to noise ratio (Mono) 68dB FM Selectivity(DIN) over 80dB (±400kHz) FM Stereo Separation (1kHz) 40dB MW range: 531kHz – 1611kHz (9kHz step) Yes MW Usable Sensitivity 28.5μV LW range: 153kHz – 279kHz (9kHz step) Yes LW Usable Sensitivity 45μV
Bluetooth specifications
Technology Bluetooth V3.0 Frequency 2.402 – 2.48 GHz Output power +4dBm(max), 0dBm (AVE) power class 2 Maximum range Line of sight approx. 10 meter Handsfree profile (HFP) Yes, V 1.6 Serial port profile (SPP) Yes, V 1.2 Service discovery protocol (SDP) Yes Advanced audio distribution profile (A2DP) Yes, V 1.3 Audio Codec SBC/AAC Audio/Video remote control profile (AVRCP) Yes, V 1.5 Generic access profile (GAP) Yes Phonebook access profile (PBAP) Yes, V 1.2
DVD Specifications
D/A Converter 24 bit MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2 MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2 DivX Decoder DivX with MP3, Dolby Digital Audio Format JPEG Files Yes Audio decoder Linear PCM/Dolby Audio/MP3/WMA/WAV/AAC(.m4a) MP3 Decoder Compliant with MPEG-1/2 Audio Layer-3 WMA Decoder Compliant with Windows Media Audio WAV Decoder RIFF waveform Audio Format (only for LinearPCM) AAC Decoder “.m4a” file encoded by AAC-LC format Wow & Flutter Below Measurable Limit Freq. Resp. (96kHz Sampling) 20Hz ~ 22kHz Freq. Resp. (48kHz Sampling) 20Hz ~ 22kHz Freq. Resp. (44,1kHz Sampling) 20Hz ~ 20kHz Total Harmonic Distortion 0.01% (1kHz) Signal to Noise Ratio 90dB (1kHz) Dynamic Range 90dB Disc Format DVD-Video/Video-CD/CD-DA Sample Frequency 44.1kHz/48kHz/96kHz Quantifying bit number 16/20/24bit
USB Specifications
USB Version compatibility USB 2.0 High Speed File System FAT 16/32 Maximum Supply current 1500mA D/A Converter 24bit MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2 MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2 DivX Decoder JPEG Files Yes MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode AAC Decode “m4a” & “aac” file encoded by AAC-LC format WAV Decode Linear – PCM Files flac Decode FLAC files up to 96kHz/24bit
Audio Specifications
Maximum Power 50W x 4 Output Power (DIN45324,+B=14.4v) 22W x 4 Preout Level 4000mV / 10kOhm, Preout Impedance ≤ 600Ohm Speaker Impedance 4Ohm ~ 8Ohm Graphical Equalizer 13-Band G. EQ. Frequency (Hz) 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k G. EQ. Gain (dB) +/- 9dB High Pass Filter Frequency (Hz) Through/50/60>>>/180/220 Low Pass Filter Frequency (Hz) 50/60/80/100/120/Through Subwoofer Level (dB) -50 dB to +10dB
Video Specifications
Color System of External Video Input NTSC/PAL External video input level (mini-jack) 1 Vpp / 75 Ohm External audio max. input level (mini-jack) 2 Vpp / 25 kOhm Video input level (RCA) 1 Vpp, 75 Ohms Video Output Level (RCA) 1 Vpp / 75 Ohm
Monitor Specifications
Screen size (Diagonal) 6.2 Inches Wide Screen Size (WxH) 137.5 x 77.2mm Display system Transparent TN LCD Panel Drive system TFT Active Matrix System Number of Pixels 1152000pixels (800(H) x 480(V) x RGB) Effective pixels 99.99% Pixel arrangement RGB Striped Back lighting LED (Light Emitting Diode)
General Specifications
Operating voltage 14.4V (10.5 ~ 16V Allowable) Maximum Current Consumption 10A Dimensions (WxHxD) 178 x 100 x 162mm Weight, inclu. sleeve & escutcheon 2 kg Operation Temperature Range -10°C ~ 60°C
Accessories
Release keys 2 pieces Escutcheon Yes Installation Sleeve Yes DC cord (Mitsumi to ISO) 25 cm Handsfree Microphone with 3 m cable Multi-Language Instruction Manual Included Manuals Downloadable Yes SKU: n/a$469$549
