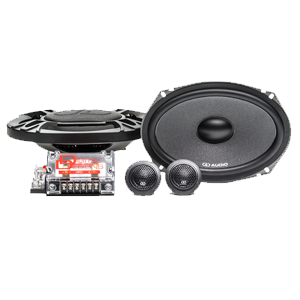

DD Audio DC6X9 D CLASS 6X9 COMPONENT SET
Available on back-order
he D Class 6×9 Component set consists of high tech, high fidelity drivers designed for the listener wanting to go well beyond the standard factory upgrade.
Woofer:
Our focus on sound quality starts with precision motor assemblies. The machined magnet gaps driven with high energy strontium magnets provide strong output from a compact design. We incorporated distortion reducing copper shorting rings for flux modulation and inductance control. The aluminum mid woofer cones achieve wide bandwidth and efficient energy transfer to the air. The compressed rubber surrounds are durable and have been optimized for light weight to increase sensitivity.
Tweeter:
The tweeter side of the D Class component sets is our T2a 25mm ultra-light diaphragm tweeter. This new diaphragm is less than 0.003 of an inch thick; that’s almost nothing of a mm. This proprietary fabric is so thin it’s virtually see through, well, actually it is see through. The ultra-light dome is coupled to a low-distortion, neo motor with flush/surface mounting hardware and metal grill options.
Crossover:
The 2-way crossover features low distortion coils and metalized polypropylene caps that pass the source without degradation. The D Class components are purposefully built, enthusiast quality sets — everything you need for great sound and nothing you don’t.
SPECS
Driver Size – in Woofer 6×9 / Tweeter 25mm
Power Band – Watts 50-150
Impedance S4
Frequency Response – Hz 40-25k
dBSPL 90
Cutout Diameter – in 5.96 x 8.61
Mounting Depth – in 2.39
Shipping Weight – lbs 10
Note: Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.
Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.
$379 $440
Available on back-order
