Minimized Space, Maximized Bass
Overview

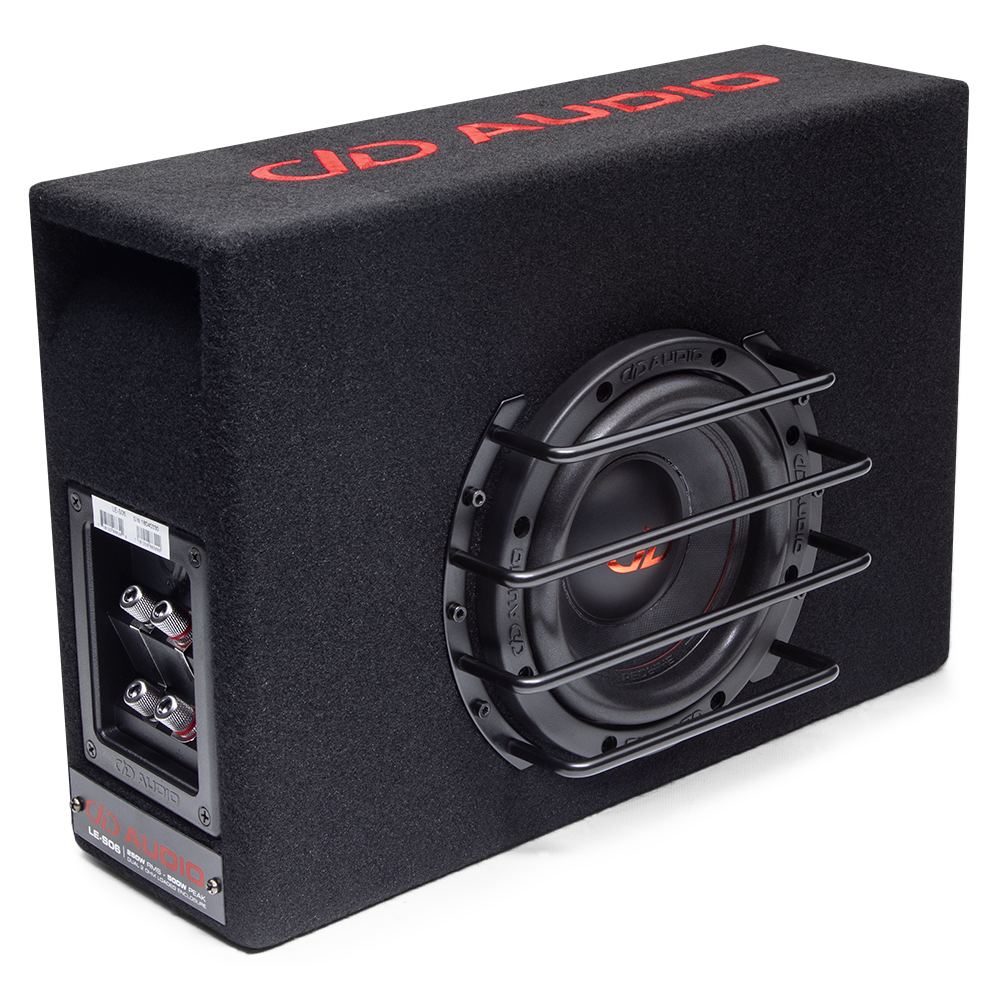

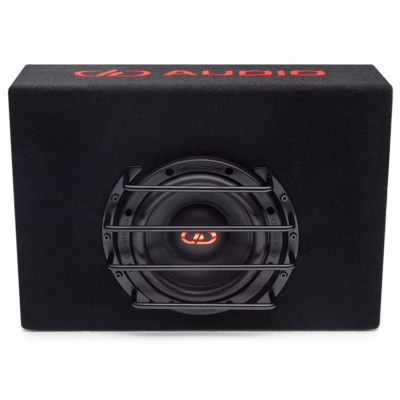

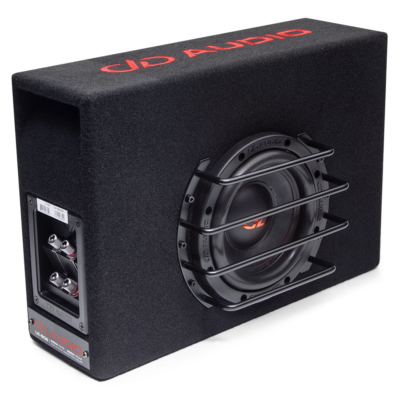

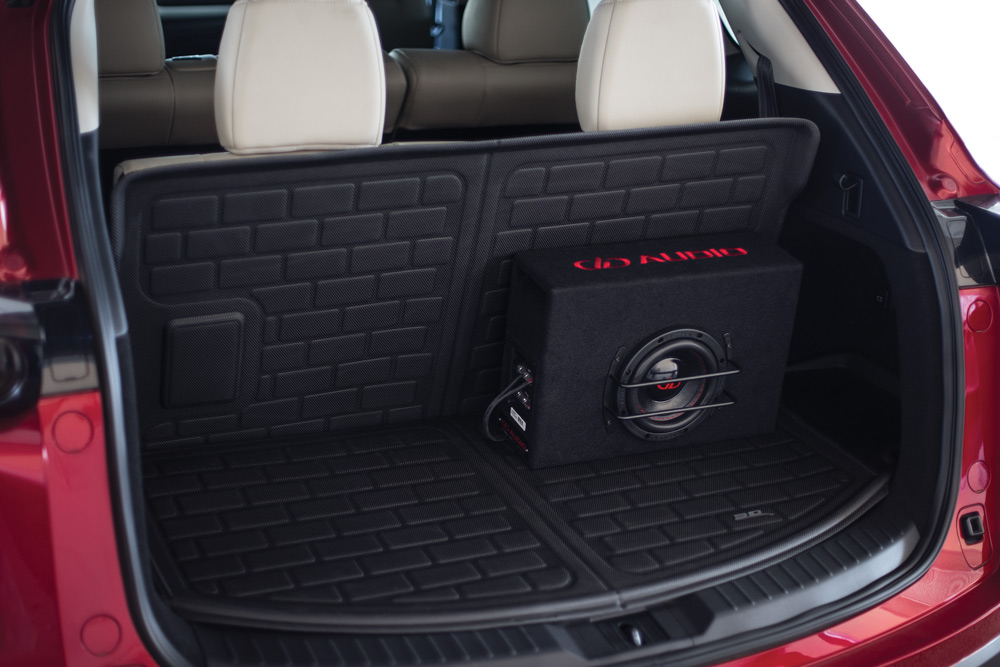

For the LE-S Enclosure, our goal was to build the smallest, best sounding enclosure possible. So we took our DdBox system and built a small mountain of prototype boxes to determine the optimal size, tuning and port design. The resulting product is the perfect sub solution when space is limited, but the listener still desires quality low bandwidth reproduction. The 6.5” subwoofer used in the LE-S06 enclosure is built with highly durable parts that have been tuned specifically for this enclosure.

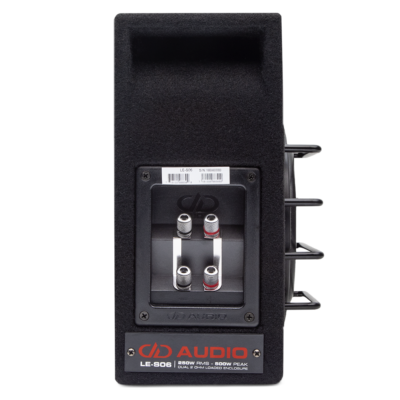

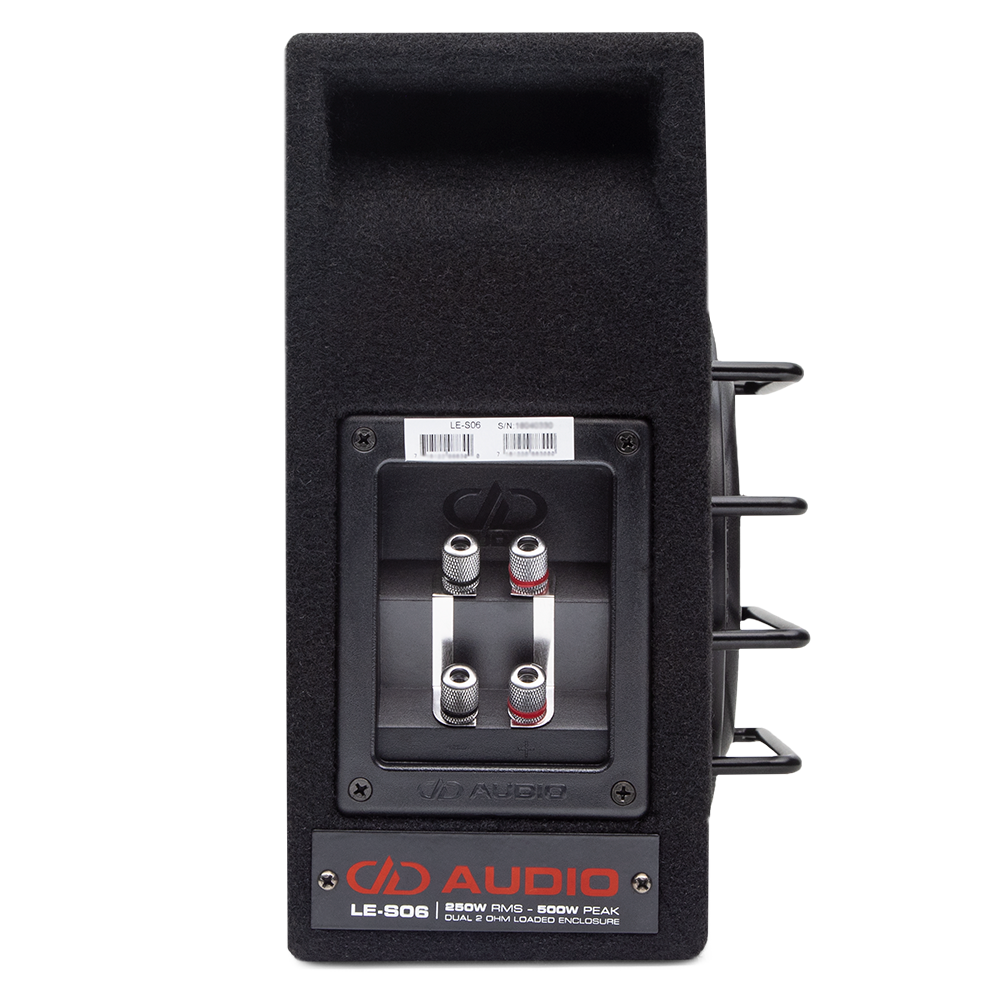

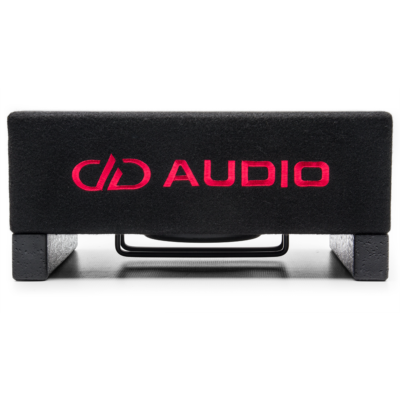

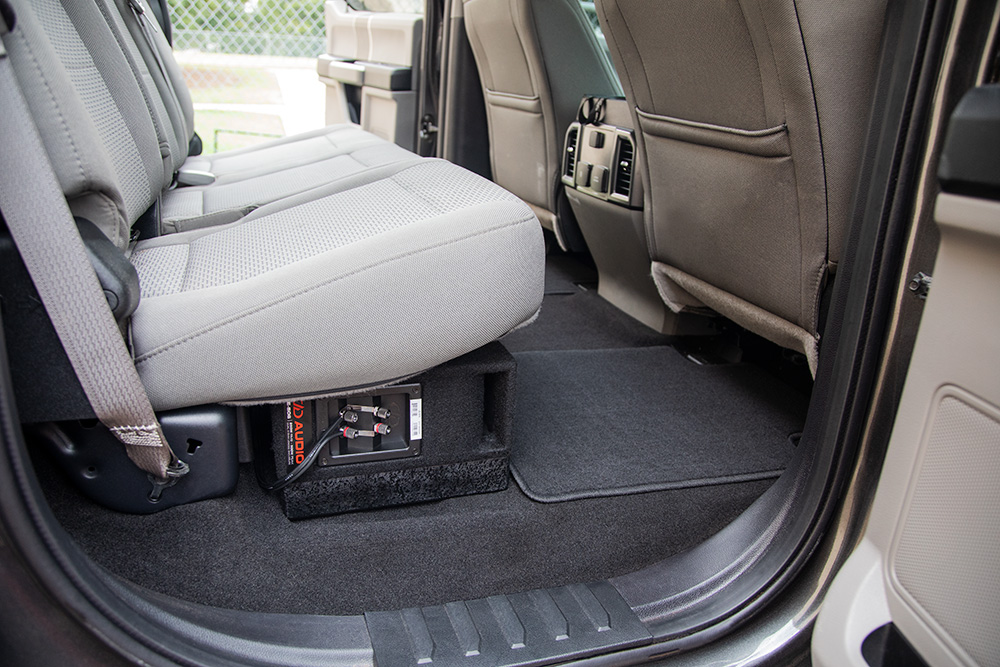

In our testing, the LE-S outperformed similar products that used larger diameter drivers and larger boxes. The shape and size of the enclosure make it perfect for behind truck seat applications, and with the supplied feet you have the option to use it in downfire under seat applications. To make this little guy even more versatile, it features a bi-amp speaker terminal cup allowing you to easily wire the enclosure to 1 or 4 Ohm depending on your amps
Specifications
- MODEL LE-S06D
- Driver Size 6.5″
- Watts RMS 250-500
- VCD 2
- Impedance D2
- Dimensions: in 16 x 5 x 11
- Dimensions: mm 410 x 130 x 280
- Shipping Weight – lbs 24
