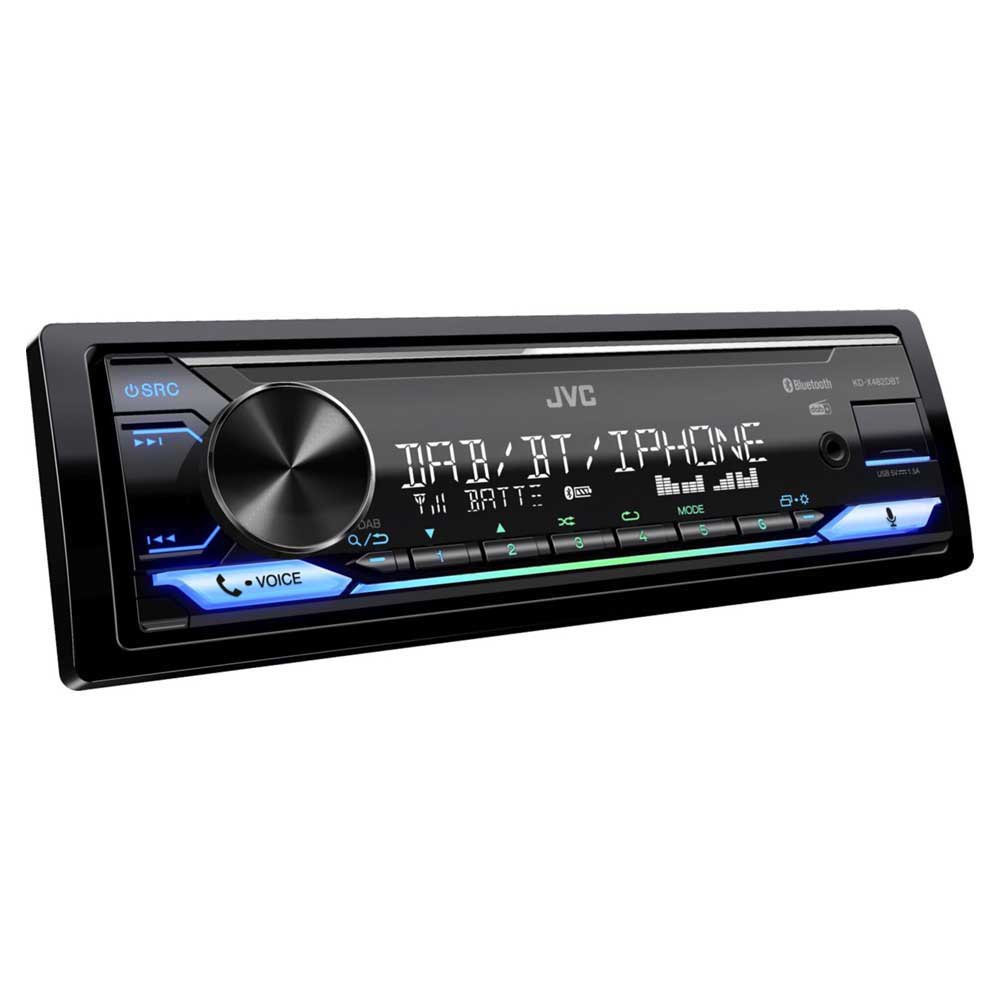

Digital Bluetooth Media Receiver with USB and AUX (Mechless unit without CD)
Digital Media Receiver featuring Bluetooth / USB / 13-Band EQ / Variable-Color Illumination / JVC Remote App Compatibility / Bluetooth Control
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ.
Move to the groove and get the party pumping to the max.
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing.
Calls to either phone can be received by a push of a key on the receiver.
Bluetooth Hands-Free Profile 1.7
HFP 1.7 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.
iPhone Bluetooth Automatic Pairing
Just connect your iPhone via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Low Battery Information
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.
Display
2-Line VA LCD Display
Equipped with VA (Vertical Alignment) LCD panels that offer a broader angle of view and better visibility. The 2-line display provides more information with animation effects.
2-Zone Variable-Color Illumination
You can mix the front panel illumination into 2 separate color zones. 50 preset patterns (49 colors + 1 user color preset) are available for easy customization. In addition, manual setting is possible to set each RGB color by 32 steps, providing a total of 32,768 different colors for each zone, 1 and 2, to match your preferences. You can even enjoy moving illumination, selectable from 10 color animation patterns
Music Sync. Effect
Changes illumination patterns according to the rhythm of the music. Illumination key colors can be preset the way you like.
USB
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
SOUND OPTIMIZATION
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range.
For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the head unit automatically adjusts the sound effectively.
Sound Response
This function boosts the low frequencies which can be lost during compression to MP3 or AAC.
Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
General
Remote Control App
Control the receiver’s source directly from the smartphone using simple finger gestures with “JVC Remote” app* (now available for both iOS and Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.
Short Body
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Display
- LCD Colour – White
- Key Colour – Variable Color
- Music Sync. Effect
- Spanish Text Display Compatible
- Auto Dimmer
- Brightness Control
- 2-Line VA LCD Display
- Variable Colour
Media Playback
- MP3 Compatible with Tag (USB)
- WMA Compatible with Tag (USB)
- WAV Compatible with Tag (USB)
- AAC Compatible with Tag (USB)
- FLAC Compatible with Tag (USB)
Bluetooth®
- Built-In Bluetooth – Ver 4.2, (Wired-Mic included) *Available functions depend on mobile phone.
- Hands Free Call (HFP) – HFP 1.7.1)
- Audio/Video Remote Control Profile (AVRCP) – (AVRCP 1.6.1)
- Supported Audio Formats – AAC / SBC
- Voice Dialing – * Voice recognition compatible mobile phone required
- 2 Phones Full-Time Connection
- 5 BT-Audio Connection
- Phone Book Access Profile (PBAP)
- Auto Pairing for iPhone / Android – (iPhone only)
- Low Battery Information
Android Control
- Android Music Playback (via Bluetooth)
Inputs and Outputs
- AUX Input – 1 (Front)
- Line Output Terminals (Pair) – 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level – 3.5V
- Subwoofer Output with Level/Frequency Control (Level -50 to +10)
- Subwoofer Output Level – 3.5V
Tuner
- Radio Data System (RDS)
- Preset Stations – 18FM + 6AM + 12SW
- Strong Station Memory (for FM)
- Radio Timer – (Once/Daily/Weekly)
- Tuner Preset Memory (for power disconnection)
- FM Frequency Range – 87.5 – 108.0MHz
- AM Frequency Range – (MW) 531 – 1,602kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)
Audio
- Maximum Power Output – 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD) – 22W x 4
- Subwoofer Direct Connection (Mono Lch)
- Time Alignment
- 13-Band Graphic EQ
- Preset EQ (11-Preset)
- Space Enhancement
- Sound Response
- Sound Lift
- Volume Link EQ
- Loudness Control
- Bass Boost
- High-Pass Filter/Low-Pass Filter
- K2 Technology
General
- Shallow Chassis
- Back Up Memory
- Detachable Face Panel
- Carrying Case
- Wireless Remote Control – Optional
- Steering Remote Control Ready
- Remote Control Application
- Installation Size (W x H x D) – 182 x 53 x 100mm
- Weight – 0.6kg
- Unit weight in individual package – 0.8kg
iPod/iPhone Control
- iPod/iPhone Music Playback (via USB or Bluetooth(R))
USB
- Position – Front
