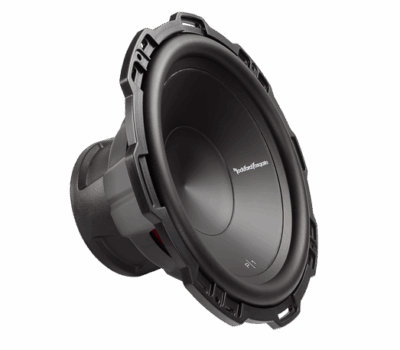

Rockford Fosgate P1S2-12 12? Punch P1 2-Ohm SVC Subwoofer
Available on back-order
Rockford Fosgate P1 12? is the first in a family of famous ?Punch? subwoofers. The P1S2-12 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
- Linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex? re-inforcement collar
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Soft touch ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
$199
Available on back-order
