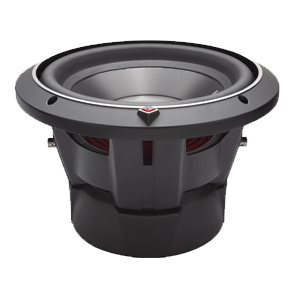

Rockford Fosgate P3D4-10″ Subwoofer
Out of stock
Product Highlights:
- 10″ subwoofer with dual 4-ohm voice coils
- anodized aluminum cone with Santoprene surround
- hybrid StampCast basket provides strength while minimizing weight and resonance
- Vertical Attach Surround Technique (VAST?) increases cone area
- power range: 250-500 watts RMS (1000 watts peak power)
- frequency response: 28-250 Hz
- sensitivity: 82 dB
- top-mount depth: 6-3/16″
- sealed box volume: 0.5-0.75 cubic feet
- ported box volume: 1.4 cubic feet
$439
Out of stock
Related products
-
Loaded Enclosures, Rockford Fosgate
Rockford Fosgate P3S-1X12 Single P3 12″ Shallow Loaded Enclosure
0 out of 5(0)The Rockford Fosgate P3S-1X12 is a single 12? Punch Shallow subwoofer rated at 400 Watts RMS loaded in a sealed enclosure. This subwoofer enclosure is internally wired to a 1-Ohm load and features 5/8? MDF and 10 AWG quick-release input terminals.
- Sealed truck box style enclosure
- Constructed with 5/8″ MDF
- 10 AWG input terminals
- 1-Ohm wired impedance
- Computer optimized design
- Covered with high density carpet
- Wired exclusively with Rockford Fosgate speaker cable
- Included trim ring ready to accept optional stamped mesh grille insert
Nominal Impedance (ea): 1-Ohm
Internally wired to create a 1-Ohm amplifier loadPower Handling: 400 Watts RMS
800 Watts MAXSystem Configuration: Sealed Enclosure Material: 5/8″ MDF (Medium Density Fiberboard) Speaker Connector: Up to 10 AWG compression terminals Shipping Weight: 27 Lbs. (12.24 kg) Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2):13.5 x 27.4 x D1 5.3 – D2 3.3 (in)
34.29 x 69.59 x D1 13.46 – D2 8.38 (cm)SKU: n/a$350 -
12", Rockford Fosgate
Rockford Fosgate P2D4-12″ Subwoofer
0 out of 5(0)his P2 sub features an extended pole piece and bumped backplate that leaves more room for heavy excursion, so it’ll hit deeper lows without “bottoming out.” Special venting keeps the copper-clad aluminum voice coils cool through heavy use for consistent bass performance over time.
The dual 4-ohm voice coils allow you to wire the sub for 2-ohm impedance to work with a mono sub amp, or for 8-ohm impedance if you’re using multiple subs. The P2D4-12 sub works equally well in a sealed or ported enclosure, so you can choose the kind of bass you want for your system.
To drive this single subwoofer, we recommend a mono amplifier rated between 300 and 600 watts RMS at 2 ohms.
Product Highlights:
- 12″ subwoofer with dual 4-ohm voice coils
- Kevlar? reinforced paper cone
- Santoprene surround
- hybrid StampCast basket provides strength while minimizing weight and resonance
- power range: 150-400 watts RMS (800 watts peak power)
- frequency response: 27-250 Hz
- sensitivity: 86 dB
- top-mount depth: 6-3/8″
- sealed box volume: 0.70-1.80 cubic feet
- ported box volume: 1.79 cubic feet
SKU: n/a$299 -
Monoblock, Rockford Fosgate
Rockford Fosgate R1200-1D 1,200 Watt Class-D Mono Amplifier
0 out of 5(0)The PRIME R1200-1D is an ultra-efficient mono amplifier that can produce 1,200 Watts into a 1-Ohm load without taxing the electrical system. The frequency response of the R1200-1D is optimized exclusively for use with subwoofers.
- 12dB/octave Butterworth crossover
- Infrasonic filter
- Remote PLC (Punch Level Control)
- RCA pass-thru outputs
- Real time output and power supply thermal sensing
- Cast aluminum heatsink
- Top mounted controls
- 4 Gauge power/ground connectors
- MOSFET power supply
- Short circuit protection
Number of Channels: 4 Rated Power
(RMS Continuous Power):400 Watts x 1 @ 4-Ohm
800 Watts x 1 @ 2-Ohm
1200 Watts x 1 @ 1-OhmTotal Power
(Sum of Rated Power):1200 Watts RMS Dynamic Power
(PVC/PowerCube?):499 Watts x 1 @ 4-Ohms 0? Res
898 Watts x 1 @ 2-Ohms 0? Res
1,400 Watts x 1 @ 1-Ohm 0? ResBridgeable: No Frequency Response: 20Hz to 250Hz /-1dB Efficiency (average): 85% @ 4-Ohm
85% @ 2-Ohm
80% @ 1-OhmTotal Harmonic Distortion(THD Noise): 4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%Crossover Controls: Low-Pass: Variable 50Hz – 500Hz @ 12dB/Octave
Infrasonic:Tone Controls: 0dB to 18dB @ 45Hz Input Sensitivity: 150 mV to 4 V Signal Input: Low Level: 1 RCA Pair Signal Output: Low Level: 1 RCA Pair Power Input Connector: Block Power Wire Gauge: 4 AWG Speaker Output Connector: Block Speaker Wire Gauge: 12 AWG Heat Sink Type: Cast aluminum Cooling: Convection Remote Controls: Variable 0dB to 12dB @ 45Hz Visual Indicators: Power
ProtectCircuit Topology Class: Class-D Operating Voltage: 9 – 16 VDC Recommended Fuse
(not included):150 A Max. Current Draw (13.8V Sinewave): 110 A Average Current Draw (13.8V Music): 55 A Suggested Alternator: 100 A Shipping Weight: 7.825 Lbs. (7.82 Kg.) Dimensions (H x W x D): 1.97″ x 6.77″ x 11.06″
(5cm x 17.20cm x 28.10cm)SKU: n/a$699 -
Amp Wiring Kits, Rockford Fosgate

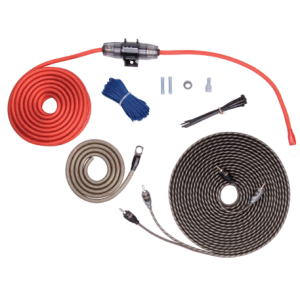

Rockford Fosgate RFK8I 8 AWG Power & Signal Installation Kit
0 out of 5(0)- FULL spec cable ? meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 8AWG (8.36mm?) 735 strands
SKU: n/a$129
