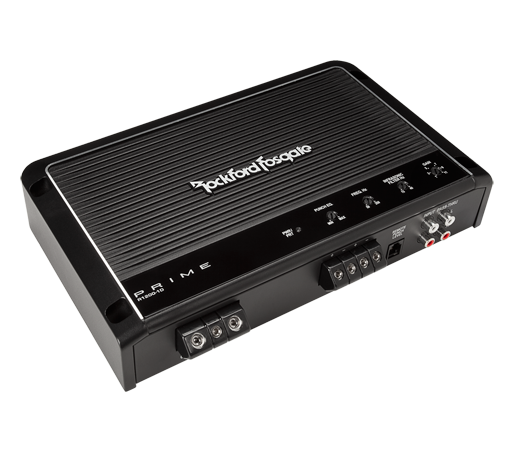

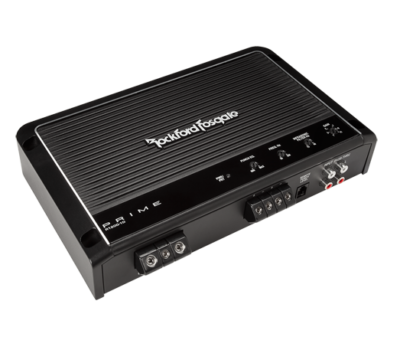

Rockford Fosgate R1200-1D 1,200 Watt Class-D Mono Amplifier
Availability:
Out of stock
The PRIME R1200-1D is an ultra-efficient mono amplifier that can produce 1,200 Watts into a 1-Ohm load without taxing the electrical system. The frequency response of the R1200-1D is optimized exclusively for use with subwoofers.
- 12dB/octave Butterworth crossover
- Infrasonic filter
- Remote PLC (Punch Level Control)
- RCA pass-thru outputs
- Real time output and power supply thermal sensing
- Cast aluminum heatsink
- Top mounted controls
- 4 Gauge power/ground connectors
- MOSFET power supply
- Short circuit protection
Number of Channels: | 4 |
Rated Power (RMS Continuous Power): |
400 Watts x 1 @ 4-Ohm 800 Watts x 1 @ 2-Ohm 1200 Watts x 1 @ 1-Ohm |
Total Power (Sum of Rated Power): |
1200 Watts RMS |
Dynamic Power (PVC/PowerCube?): |
499 Watts x 1 @ 4-Ohms 0? Res 898 Watts x 1 @ 2-Ohms 0? Res 1,400 Watts x 1 @ 1-Ohm 0? Res |
Bridgeable: | No |
Frequency Response: | 20Hz to 250Hz /-1dB |
Efficiency (average): | 85% @ 4-Ohm 85% @ 2-Ohm 80% @ 1-Ohm |
Total Harmonic Distortion(THD Noise): | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |
Crossover Controls: | Low-Pass: Variable 50Hz – 500Hz @ 12dB/Octave Infrasonic: |
Tone Controls: | 0dB to 18dB @ 45Hz |
Input Sensitivity: | 150 mV to 4 V |
Signal Input: | Low Level: 1 RCA Pair |
Signal Output: | Low Level: 1 RCA Pair |
Power Input Connector: | Block |
Power Wire Gauge: | 4 AWG |
Speaker Output Connector: | Block |
Speaker Wire Gauge: | 12 AWG |
Heat Sink Type: | Cast aluminum |
Cooling: | Convection |
Remote Controls: | Variable 0dB to 12dB @ 45Hz |
Visual Indicators: | Power Protect |
Circuit Topology Class: | Class-D |
Operating Voltage: | 9 – 16 VDC |
Recommended Fuse (not included): |
150 A |
Max. Current Draw (13.8V Sinewave): | 110 A |
Average Current Draw (13.8V Music): | 55 A |
Suggested Alternator: | 100 A |
Shipping Weight: | 7.825 Lbs. (7.82 Kg.) |
Dimensions (H x W x D): | 1.97″ x 6.77″ x 11.06″ (5cm x 17.20cm x 28.10cm) |
$699
